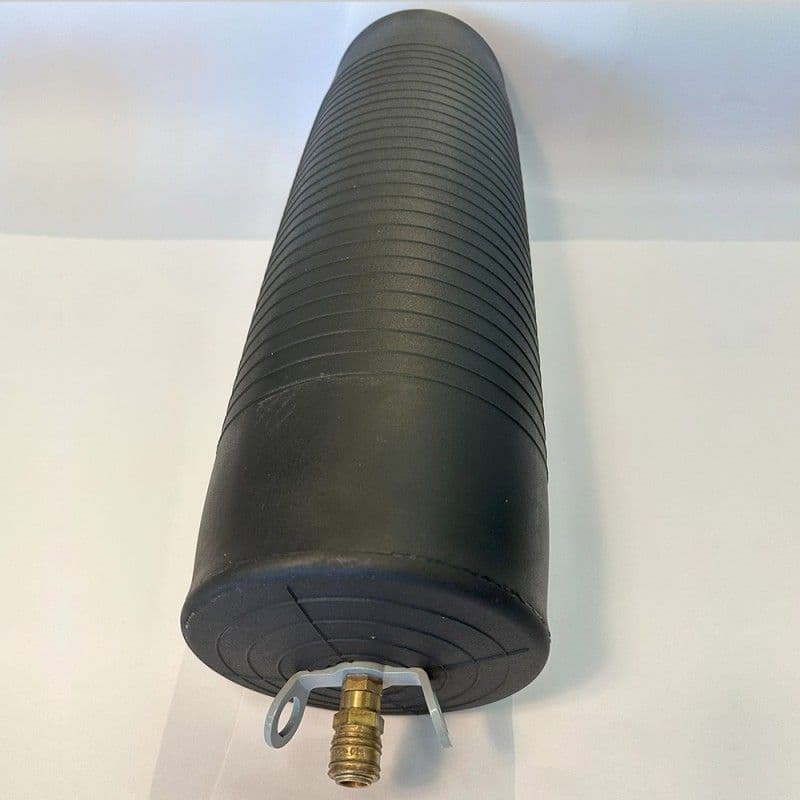

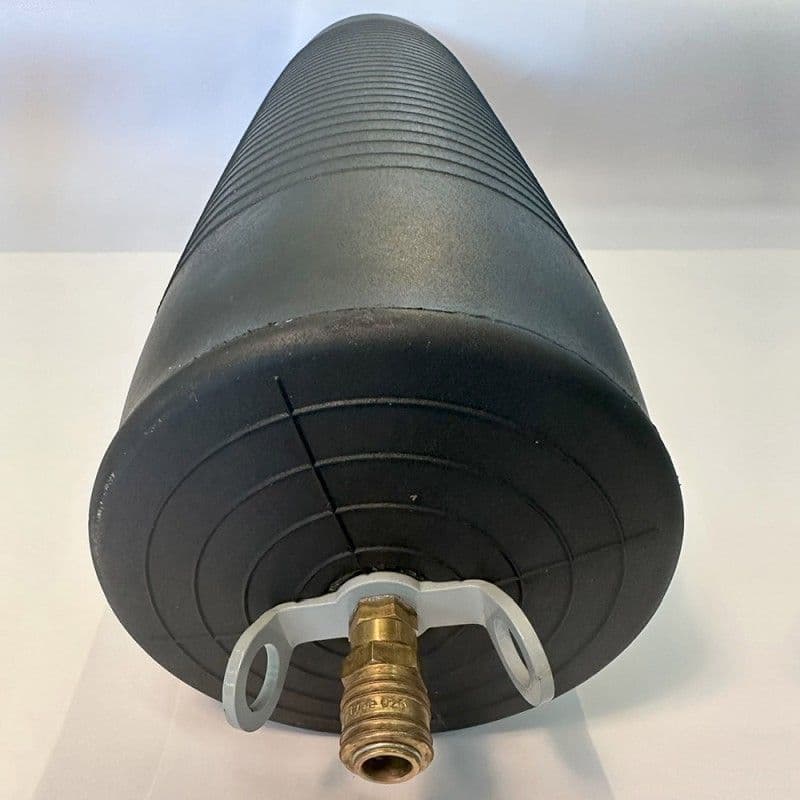

1.5 bar blank inflatable pipe stopper, with an expansion range of 200-400mm/8-16, suitable for pipes with a maximum back pressure of 0.5 bar (5m head of water). This blank inflatable pipe stopper requires 1.5 bar inflation pressure, and is suitable for pipes with a diameter larger than 185mm.
Blank inflatable pipe stoppers can be used to seal a wide range of pipes, with remote inflation through an inflation hose. These pipe stoppers are manufactured from natural rubber, and are fitted with a series 26 coupling.
This stopper can be purchased on its own, with a hose only or with a hose and compressor controller, hose and hand pump controller or hose, hand pump controller and hand pump. Please Select from the drop down options above.
Please note: Suitable bracing should be used with inflatable blank pipe stoppers at all times. Back pressure values given are valid in concrete pipes and properly braced configurations see the Examples of Bracing document in the Downloads section for more information.
| Inflation Range | 200-400mm / 8-16 Inches |
| Minimum Pipe Diameter | 185mm |
| Length | 650mm |
| Inflation Pressure | 1.5 bar |
| Max Back Pressure | 0.5 bar |
| Weight | 3.4kg |
Made of high quality rubber (natural rubber) with fabric reinforcement.
Temperature range from -20 to +80°C.
