100mm/4” inflatable sealing and testing kit, for use when carrying out a water test or standard air pipe test of 100mm water over air.

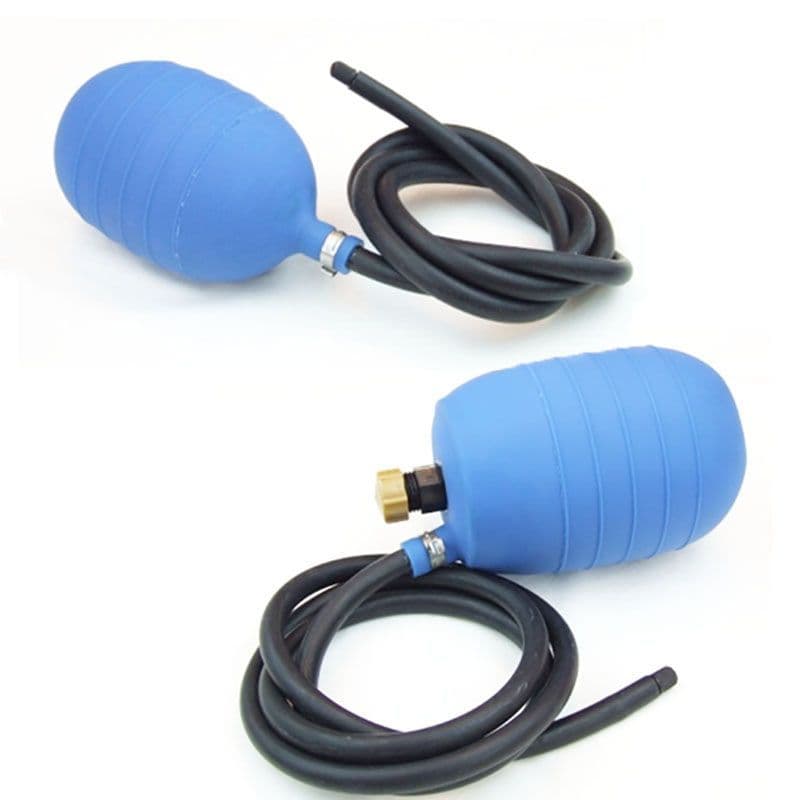

This kit includes a PVC inflatable sealing bag with 1.2m inflation hose and a PVC inflatable testing bag with 1.2m inflation hose. Each bag has an expansion range from 90-110mm, and a contact length of 80mm. The testing bag has a ½” through tube with a ½” BSP male thread,
Both bags are easily inflated using a standard Schrader valve hand pump to create an air-tight seal.
|
PVC Sealing Bag |
PVC Testing Bag |
| Inflated Diameter |
100mm / 4 Inches |
100mm / 4 Inches |
| Range |
90-110mm |
90-110mm |
| Contact Length |
80mm |
80mm |
| Through Tube Diameter |
N/A |
0.5 Inches |
| Max Back Pressure |
7 psi |
7 psi |
